Alice DA6-2
Stereo Distribution Amplifier (Balanced, +/- 20db)

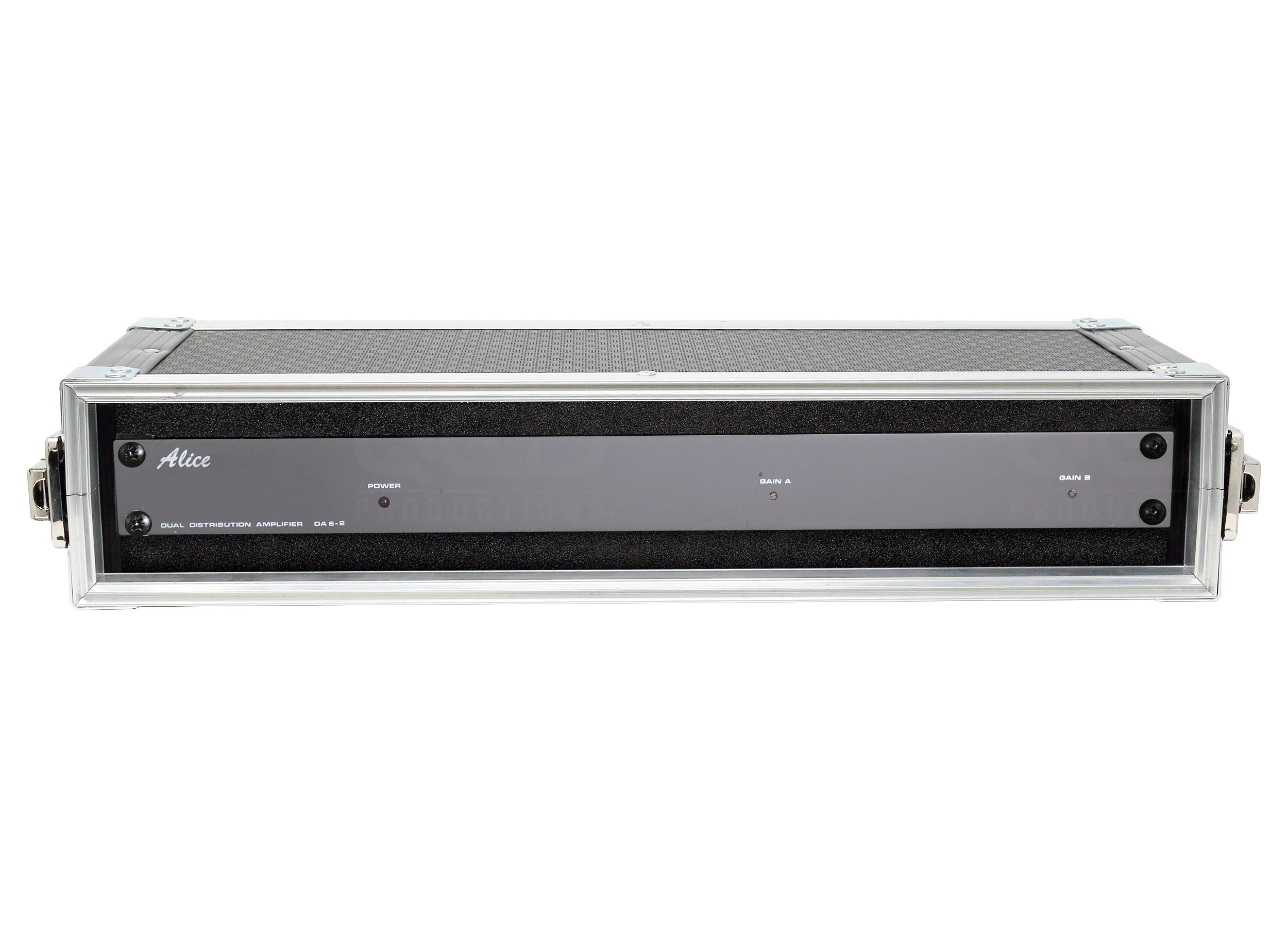

The Alice DA6-2 is a one stereo pair in, six stereo pairs out, high performance audio distribution amplifier allowing one stereo source to be split to up to 6 different destinations, with no loss of audio signal level or quality. The input gain is adjustable via a multi-turn preset accessible through the front panel. Outputs may be individually unbalanced without affecting gain, allowing any combination of balanced or unbalanced equipment to be driven.
|
Inputs impedance |
Internally selectable 20k ohms or 600 ohms balanced |
|
Frequency response |
20Hz to 20kHz ±0.2dB |
|
Common mode rejection |
60dB typical |
|
Phase shift |
<1° (20Hz) / <5° (20Hz) |
|
Noise |
-100dB (RMS 30Hz - 15Hz, ref +8dB output) |
|
Distortion (THD) |
0.006% (1kHz +8dBu output) / 0.02% (10Hz +8dBu output) |
|
Max input level |
+28dBu |
|
Gain |
-10dB to +20dB |
|
Output impedance |
<1 ohm balanced and floating |
|
Minimum level |
600 ohms |
|
Max output level |
+26dBu into 5kohms / +24dBu into 600ohms |
|
Mains voltage specification |
230v AC 50Hz 30VA (115v available to order) |
|
Dimensions (mm) |
445(w) x 165(d) x 44(h) |
|
Weight |
2.2kg |
