AV Stumpfl 6' x 4'6" Monoblox 32 screen
1830mm x 1370mm - Front & Rear Surfaces
|
|
|
|
|
|||
|
Features

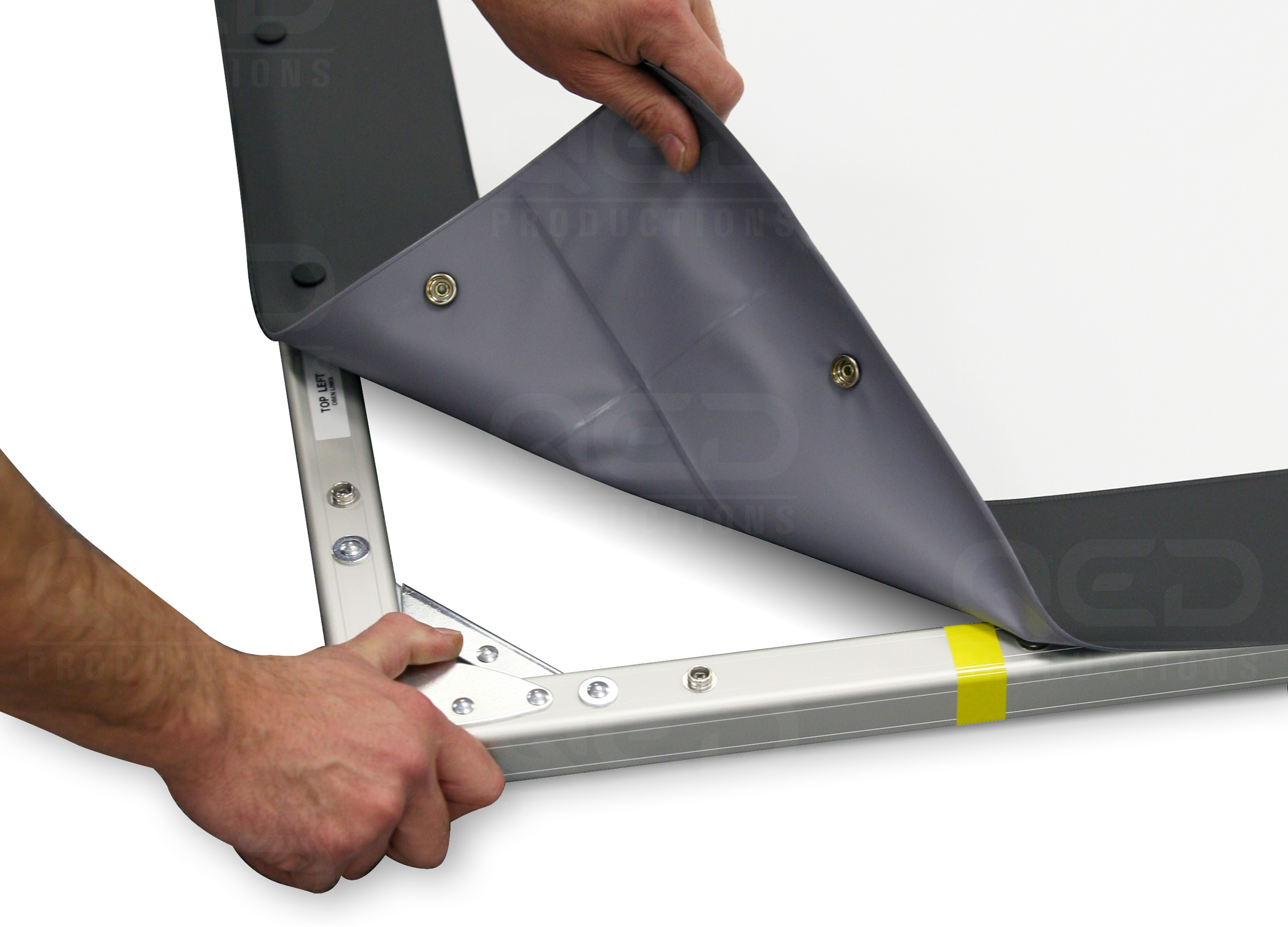

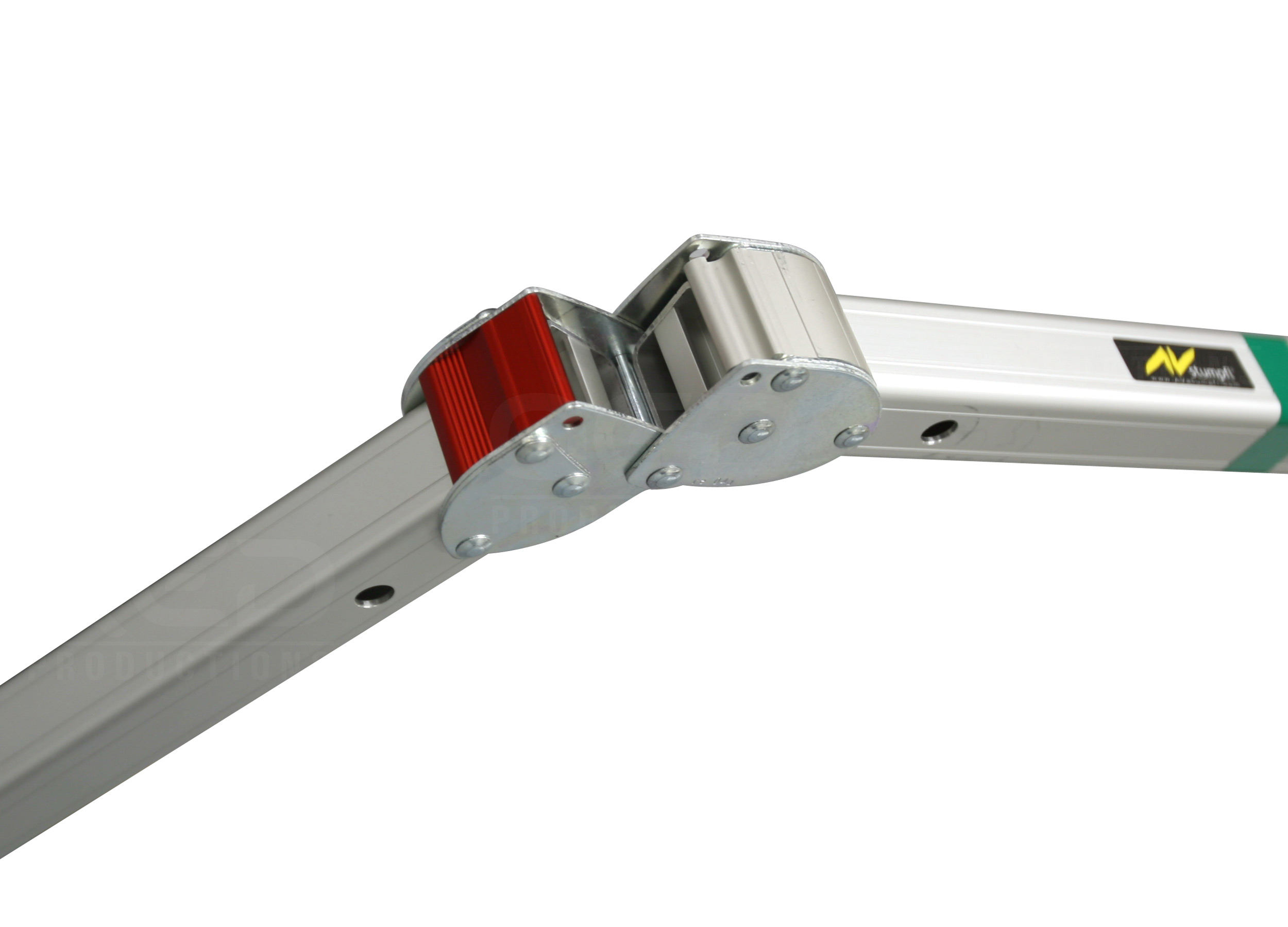

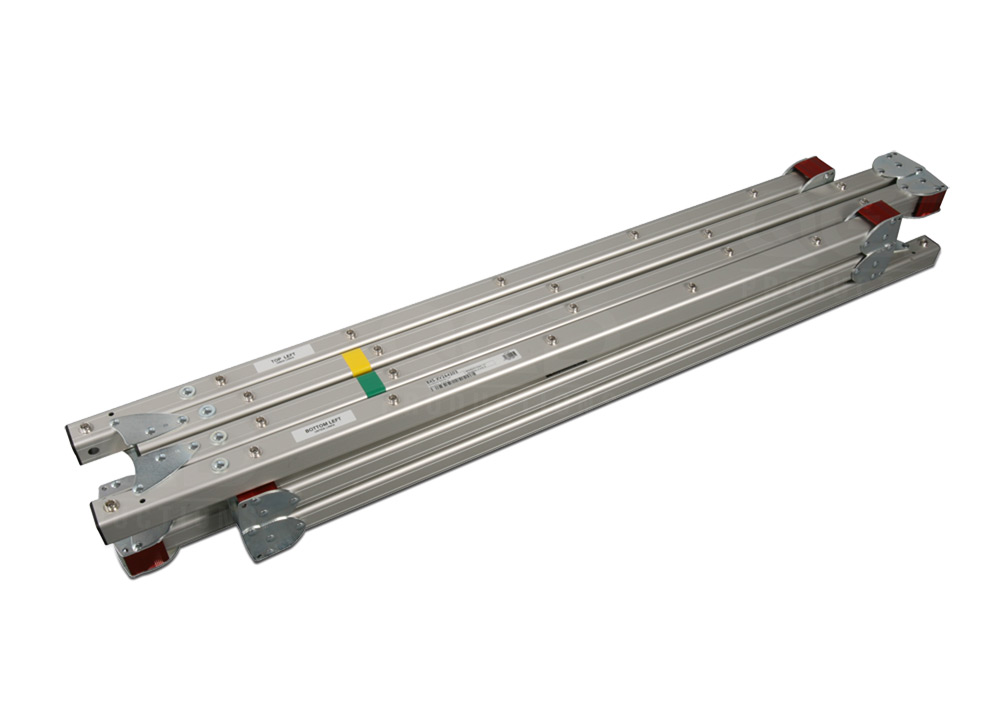

| 1 x Monoblox single-piece aluminum frame with snap joints |
| Front or rear surface |
| 2 x T32 7'3" legs |
| Transportation case |
Technical Specification
| Front projection screen material | Flex White CI - 100 % light-tight, flame resistant. |
| Gain factor | 1.02 |
| viewing angle | +/- 50° |
| Rear projection screen material | Flex Rear MO - cleanable, flame resistant. |
| Gain factor | 2.25 |
| Viewing angle | +/- 45° |
| Size of projection area (image dimensions) | 6' x 4"6' (183cm x 137cm) W x H |
| Frame size (outer dimensions) | 6'8" x 5'2" (203cm x 157cm) W x H |
| Bottom edge height (with legs) | Minimum - 2.4" (6cm) / Maximum - 2'8" (82cm) |
| Top edge height (with legs) | Minimum - 5'4" (163cm) / Maximum - 7'10" (239cm) |
| Shipping Weight | 25.1kg |
