AV Stumpfl 39'4" x 13'1" Vario 64 screen
12000mm x 4000mm - Front & Rear Surfaces
|
|
|
|
|
|||
|
|
Features

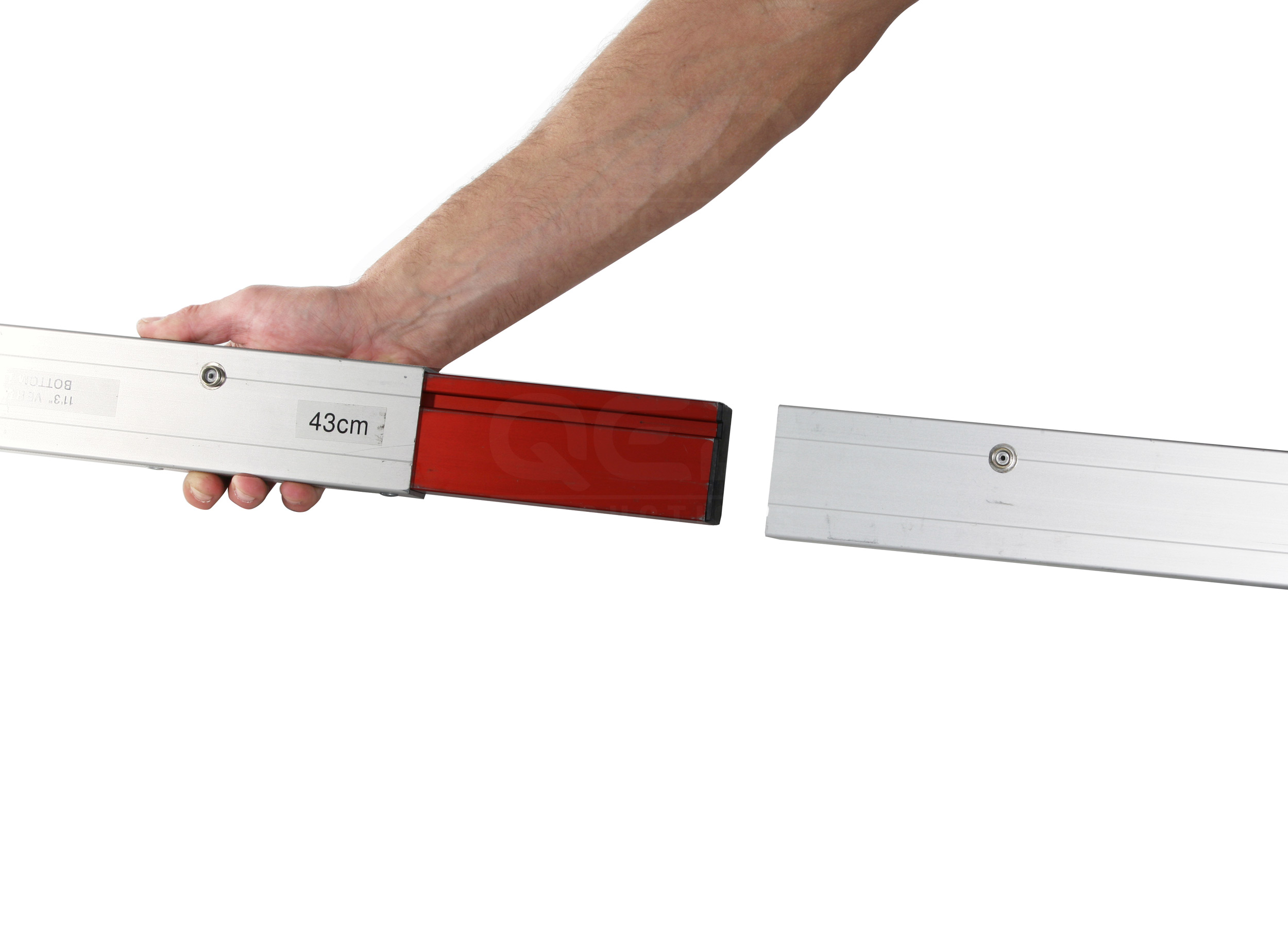

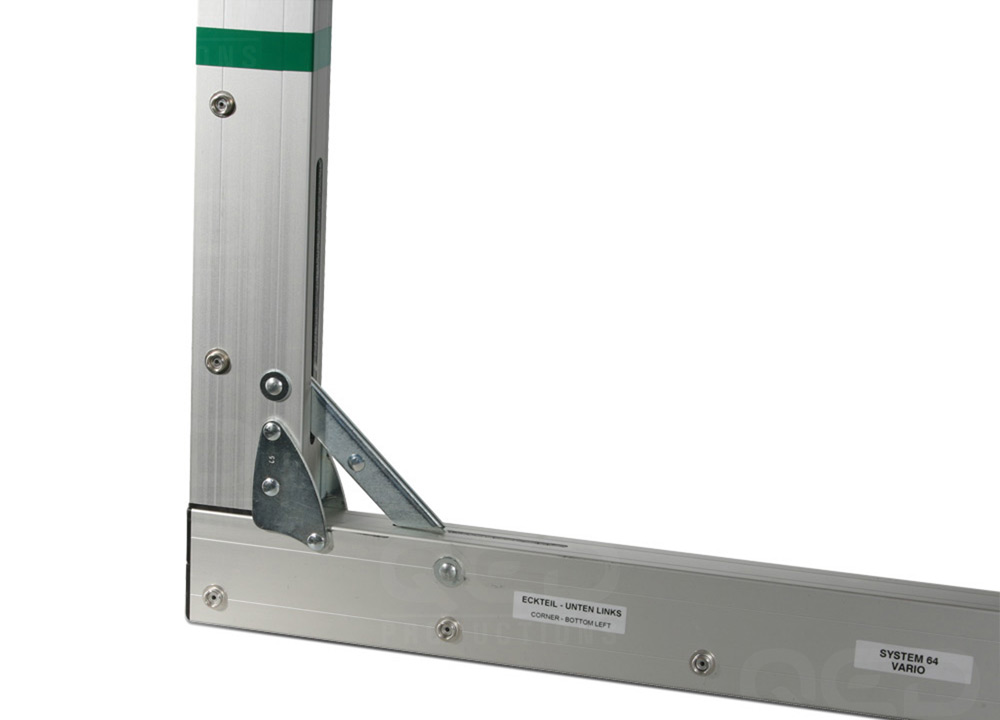

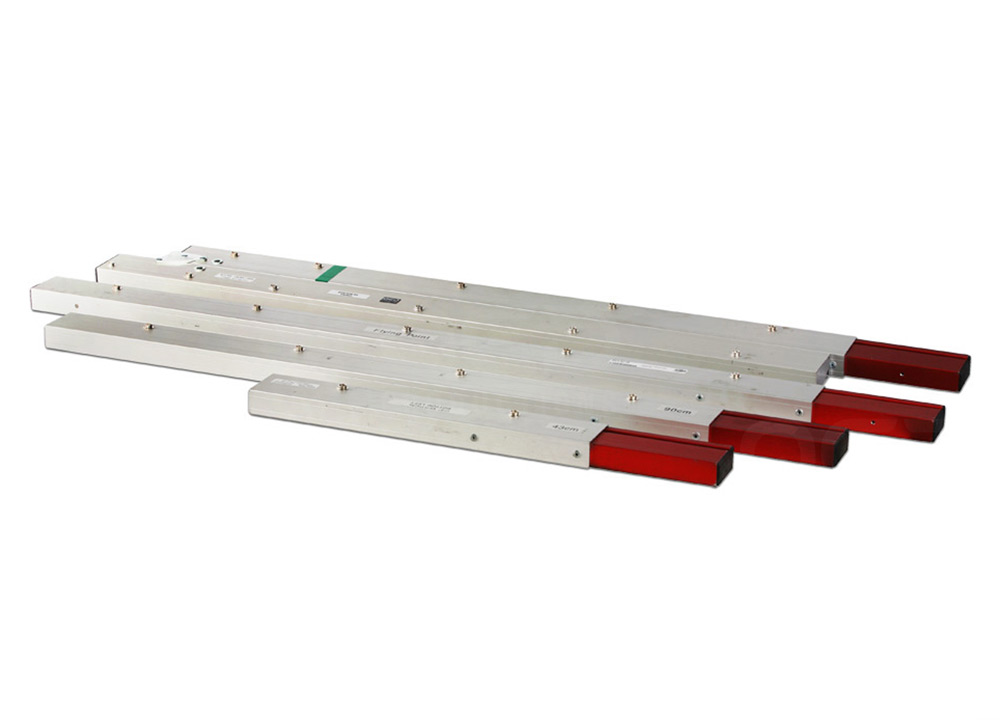

| 4 x corners, 24 x frame bars |
| Internal support struts: 2 x 100cm poppered bars, 6 x frame bars, 4 x strut clamps |
| Front & rear surfaces |

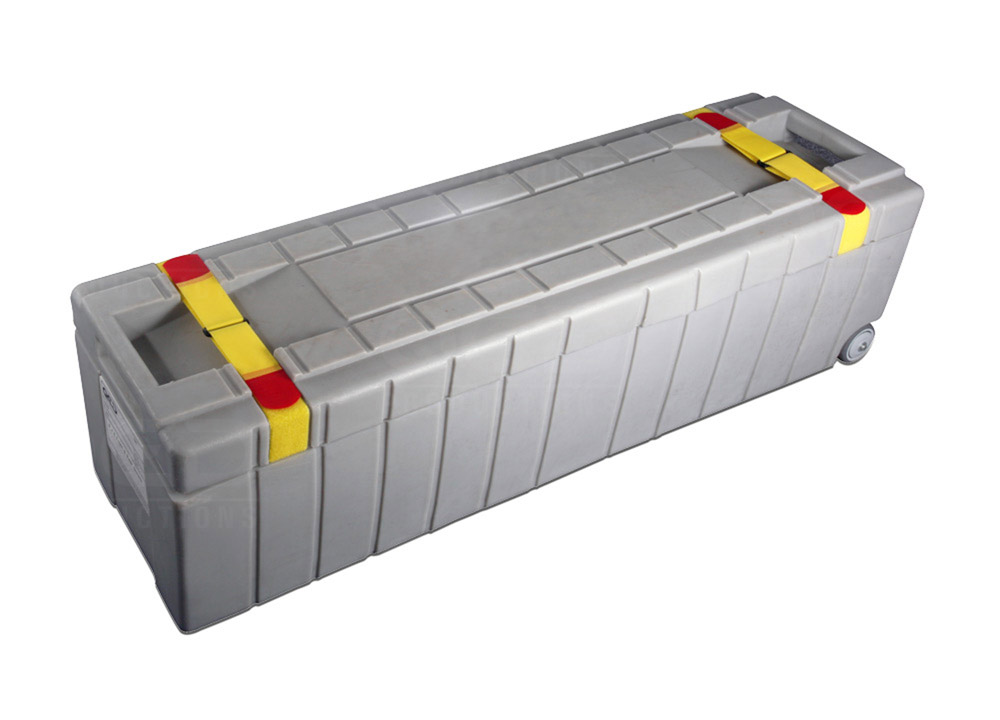

| Transportation case |
| 3 x AT32/64 14'4" legs (optional) |
| 3 x AT64 18'1" legs (optional) |

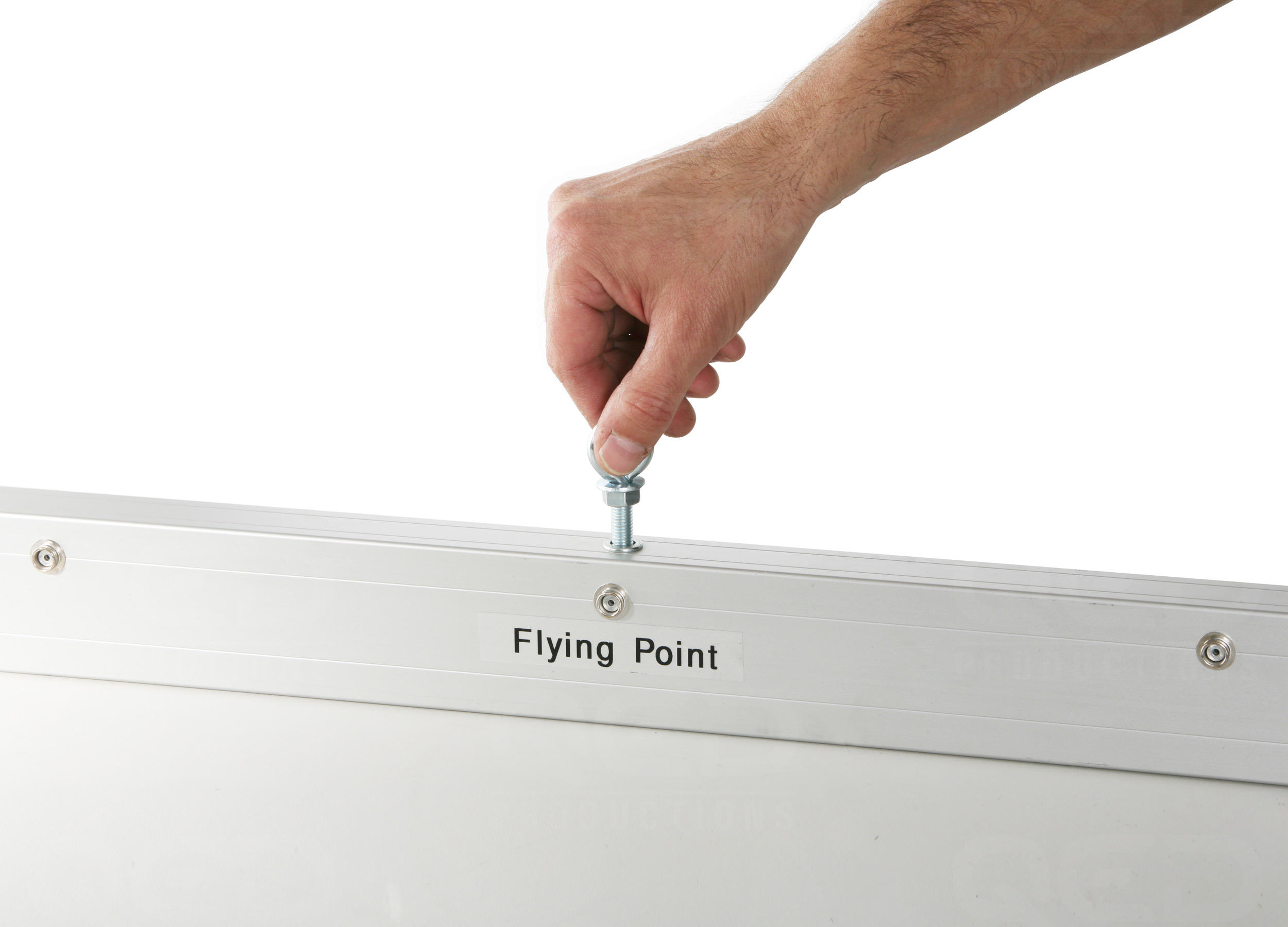

| 2 x eye-bolts for flying (optional) |
Technical Specification
| Front projection screen material | Flex White CI - 100% light-tight, cleanable, flame resistant. |
| Rear projection screen material | (10 cm wide reinforced black border) - Translite Blue - cleanable, flame resistant. |
| Gain factor | 1.02 |
| Viewing angle | +/- 50° |
| Size of projection area (image dimensions) | 39'4" x 13'1" (1200cm x 400cm) W x H |
| Frame size (outer dimensions) | 40' x 13'9" (1220cm x 420cm) W x H |
| Bottom edge height (with AT32/64 legs) | Minimum - 3.5" (9cm) / Maximum - 4'9" (146cm) |
| Top edge height (with AT32/64 legs) | Minimum - 14'1" (429cm) / Maximum - 18'7" (566cm) |
| Bottom edge height (with AT64 legs) | Minimum - 3.5" (9cm) / Maximum - 5'9" (176cm) |
| Top edge height (with AT64 legs) | Minimum - 14'1" (429cm) / Maximum - 19'7" (596cm) |
