AV Stumpfl 13'3" x 7'6" Monoblox 32 screen
4050mm x 2290mm - Front & Rear Surfaces
|
|
|
|
|
|||
|
|
Features

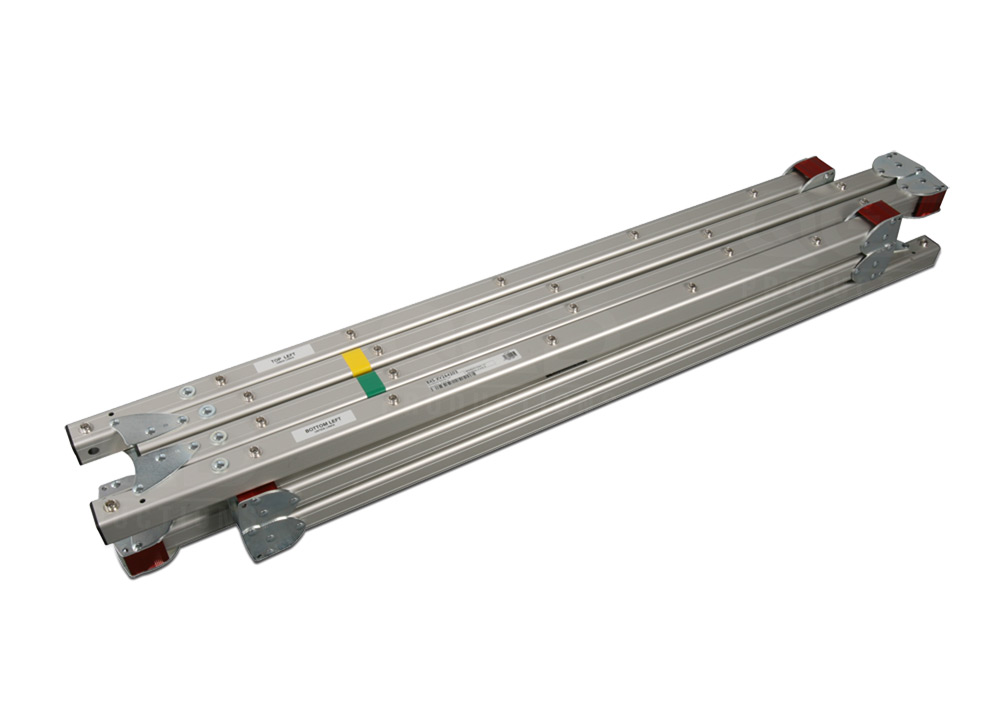

| 1 x Monoblox single-piece aluminum frame with snap joints |
| Front or rear surface |
| 2 x AT32/64 14'2" legs |
| Transportation case |
Technical Specification
| Front projection screen material | Flex White CI - 100 % light-tight, flame resistant. |
| Gain factor | 1.02 |
| Viewing angle | +/- 50° |
| Rear projection screen material | Flex Rear MO - cleanable, flame resistant. |
| Gain factor | 2.25 |
| Viewing angle | +/- 45° |
| Size of projection area (image dimensions) | 13'3" x 7'6" (405cm x 229cm) W x H |
| Frame size (outer dimensions) | 13'11" x 8'2" (425cm x 249cm) W x H |
| Bottom edge height (with legs) | Minimum - 3.5" (9cm) / Maximum - 4'9" (146cm) |
| Top edge height (with legs) | Minimum - 8'6" (258cm) / Maximum - 12'11" (395cm) |
| Shipping weight | 40.6kg |
